week 2_Operations on Word Vectors 실습 (Andrew Ng)

---

안녕하세요, HELLO



오늘은 DeepLearning.AI에서 진행하는 앤드류 응(Andrew Ng) 교수님의 딥러닝 전문화의 마지막이며, 다섯 번째 과정인 "Sequence Models"을 정리하려고 합니다.



"Sequence Models"의 강의를 통해 '시퀀스 모델과 음성 인식, 음악 합성, 챗봇, 기계 번역, 자연어 처리(NLP)' 등을 이해하고, 순환 신경망(RNN)과 GRU 및 LSTM, 트랜스포머 모델에 대해서 배우게 됩니다. 강의는 아래와 같이 구성되어 있습니다.



~ Recurrent Neural Networks

~ Natural Language Processing & Word Embeddings

~ Sequence Models & Attention Mechanism

~ Transformer Network



"Sequence Models" (Andrew Ng)의 2주차 "Operations on Word Vectors"의 실습 내용입니다.

---

Because word embeddings are very computationally expensive to train, most ML practitioners will load a pre-trained set of embeddings. In this notebook you'll try your hand at loading, measuring similarity between, and modifying pre-trained embeddings.



After this assignment you'll be able to:

• Explain how word embeddings capture relationships between words
• Load pre-trained word vectors
• Measure similarity between word vectors using cosine similarity
• Use word embeddings to solve word analogy problems such as Man is to Woman as King is to queen



At the end of this notebook you'll have a chance to try an optional exercise, where you'll modify word embeddings to reduce their gender bias. Reducing bias is an important consideration in ML, so you're encouraged to take this challenge!

---

CHAPTER 1. 'Packages'



CHAPTER 2. 'Load the Word Vectors'



CHAPTER 3. 'Embedding Vectors Versus One-Hot Vectors'



CHAPTER 4. 'Cosine Similarity'



CHAPTER 5. 'Word Analogy Task'



CHAPTER 6. 'Debiasing Word Vectors (OPTIONAL/UNGRADED)'

---

CHAPTER 1. 'Packages'



import numpy as np
from w2v_utils import *





CHAPTER 2. 'Load the Word Vectors'



For this assignment, you'll use 50-dimensional GloVe vectors to represent words. Run the following cell to load the word_to_vec_map.



words, word_to_vec_map = read_glove_vecs('data/glove.6B.50d.txt')



You've loaded:

• words: set of words in the vocabulary.
• word_to_vec_map: dictionary mapping words to their GloVe vector representation.



반응형



CHAPTER 3. 'Embedding Vectors Versus One-Hot Vectors'



One-hot vectors는 단어 간의 유사성을 측정하는 데 있어서 큰 도움이 안 됩니다. 왜냐하면 벡터 간 거리를 측정하는 데 있어서 행렬 값이 하나의 1을 제외한 모든 값이 0이기에, 연산하면 동일한 유클리디안 거리 값을 가지기 때문입니다.



이를 개선하기 위해 embedding 방법을 사용하며, 이번 실습에서는 glove 방법을 사용합니다.



Recall from the lesson videos that one-hot vectors don't do a good job of capturing the level of similarity between words. This is because every one-hot vector has the same Euclidean distance from any other one-hot vector.

Embedding vectors, such as GloVe vectors, provide much more useful information about the meaning of individual words.

---

CHAPTER 4. 'Cosine Similarity'



To measure the similarity between two words, you need a way to measure the degree of similarity between two embedding vectors for the two words. Given two vectors 𝑢u and 𝑣v, cosine similarity is defined as follows:

---

□ cosine_similarity



# UNQ_C1 (UNIQUE CELL IDENTIFIER, DO NOT EDIT)
# GRADED FUNCTION: cosine_similarity

def cosine_similarity(u, v):
    """
    Cosine similarity reflects the degree of similarity between u and v

    Arguments:
        u -- a word vector of shape (n,)
        v -- a word vector of shape (n,)

    Returns:
        cosine_similarity -- the cosine similarity between u and v defined by the formula above.
    """

    # Special case. Consider the case u = [0, 0], v=[0, 0]
    if np.all(u == v):
        return 1

    ### START CODE HERE ###
    # Compute the dot product between u and v (≈1 line)
    dot = np.dot(u, v)
    # Compute the L2 norm of u (≈1 line)
    norm_u = np.sqrt(np.sum(u ** 2))

    # Compute the L2 norm of v (≈1 line)
    norm_v = np.sqrt(np.sum(v ** 2))

    # Avoid division by 0
    if np.isclose(norm_u * norm_v, 0, atol=1e-32):
        return 0

    # Compute the cosine similarity defined by formula (1) (≈1 line)
    cosine_similarity = dot / (norm_u * norm_v)
    ### END CODE HERE ###

    return cosine_similarity



# START SKIP FOR GRADING
father = word_to_vec_map["father"]
mother = word_to_vec_map["mother"]
ball = word_to_vec_map["ball"]
crocodile = word_to_vec_map["crocodile"]
france = word_to_vec_map["france"]
italy = word_to_vec_map["italy"]
paris = word_to_vec_map["paris"]
rome = word_to_vec_map["rome"]

print("cosine_similarity(father, mother) = ", cosine_similarity(father, mother))
print("cosine_similarity(ball, crocodile) = ",cosine_similarity(ball, crocodile))
print("cosine_similarity(france - paris, rome - italy) = ",cosine_similarity(france - paris, rome - italy))
# END SKIP FOR GRADING

# PUBLIC TESTS
def cosine_similarity_test(target):
    a = np.random.uniform(-10, 10, 10)
    b = np.random.uniform(-10, 10, 10)
    c = np.random.uniform(-1, 1, 23)

    assert np.isclose(cosine_similarity(a, a), 1), "cosine_similarity(a, a) must be 1"
    assert np.isclose(cosine_similarity((c >= 0) * 1, (c < 0) * 1), 0), "cosine_similarity(a, not(a)) must be 0"
    assert np.isclose(cosine_similarity(a, -a), -1), "cosine_similarity(a, -a) must be -1"
    assert np.isclose(cosine_similarity(a, b), cosine_similarity(a * 2, b * 4)), "cosine_similarity must be scale-independent. You must divide by the product of the norms of each input"

    print("\033[92mAll test passed!")

cosine_similarity_test(cosine_similarity)

---

CHAPTER 5. 'Word Analogy Task'

---

□ complete_analogy



# UNQ_C2 (UNIQUE CELL IDENTIFIER, DO NOT EDIT)
# GRADED FUNCTION: complete_analogy

def complete_analogy(word_a, word_b, word_c, word_to_vec_map):
    """
    Performs the word analogy task as explained above: a is to b as c is to ____.

    Arguments:
    word_a -- a word, string
    word_b -- a word, string
    word_c -- a word, string
    word_to_vec_map -- dictionary that maps words to their corresponding vectors.

    Returns:
    best_word --  the word such that v_b - v_a is close to v_best_word - v_c, as measured by cosine similarity
    """

    # convert words to lowercase
    word_a, word_b, word_c = word_a.lower(), word_b.lower(), word_c.lower()

    ### START CODE HERE ###
    # Get the word embeddings e_a, e_b and e_c (≈1-3 lines)
    e_a, e_b, e_c = word_to_vec_map[word_a], word_to_vec_map[word_b], word_to_vec_map[word_c]
    ### END CODE HERE ###

    words = word_to_vec_map.keys()
    max_cosine_sim = -100              # Initialize max_cosine_sim to a large negative number
    best_word = None                   # Initialize best_word with None, it will help keep track of the word to output

    # loop over the whole word vector set
    for w in words:
        # to avoid best_word being one the input words, skip the input word_c
        # skip word_c from query
        if w == word_c:
            continue

        ### START CODE HERE ###
        # Compute cosine similarity between the vector (e_b - e_a) and the vector ((w's vector representation) - e_c)  (≈1 line)
        cosine_sim = cosine_similarity((e_b - e_a), (word_to_vec_map[w] - e_c))

        # If the cosine_sim is more than the max_cosine_sim seen so far,
            # then: set the new max_cosine_sim to the current cosine_sim and the best_word to the current word (≈3 lines)
        if cosine_sim > max_cosine_sim:
            max_cosine_sim = cosine_sim
            best_word = w
        ### END CODE HERE ###

    return best_word



# PUBLIC TEST
def complete_analogy_test(target):
    a = [3, 3] # Center at a
    a_nw = [2, 4] # North-West oriented vector from a
    a_s = [3, 2] # South oriented vector from a

    c = [-2, 1] # Center at c
    # Create a controlled word to vec map
    word_to_vec_map = {'a': a,
                       'synonym_of_a': a,
                       'a_nw': a_nw,
                       'a_s': a_s,
                       'c': c,
                       'c_n': [-2, 2], # N
                       'c_ne': [-1, 2], # NE
                       'c_e': [-1, 1], # E
                       'c_se': [-1, 0], # SE
                       'c_s': [-2, 0], # S
                       'c_sw': [-3, 0], # SW
                       'c_w': [-3, 1], # W
                       'c_nw': [-3, 2] # NW
                      }

    # Convert lists to np.arrays
    for key in word_to_vec_map.keys():
        word_to_vec_map[key] = np.array(word_to_vec_map[key])

    assert(target('a', 'a_nw', 'c', word_to_vec_map) == 'c_nw')
    assert(target('a', 'a_s', 'c', word_to_vec_map) == 'c_s')
    assert(target('a', 'synonym_of_a', 'c', word_to_vec_map) != 'c'), "Best word cannot be input query"
    assert(target('a', 'c', 'a', word_to_vec_map) == 'c')

    print("\033[92mAll tests passed")

complete_analogy_test(complete_analogy)

---

# START SKIP FOR GRADING
triads_to_try = [('italy', 'italian', 'spain'), ('india', 'delhi', 'japan'), ('man', 'woman', 'boy'), ('small', 'smaller', 'large')]
for triad in triads_to_try:
    print ('{} -> {} :: {} -> {}'.format( *triad, complete_analogy(*triad, word_to_vec_map)))

# END SKIP FOR GRADING

---

■ Congratulations!

You've come to the end of the graded portion of the assignment. By now, you've:

• Loaded some pre-trained word vectors
• Measured the similarity between word vectors using cosine similarity
• Used word embeddings to solve word analogy problems such as Man is to Woman as King is to __.



Cosine similarity is a relatively simple and intuitive, yet powerful, method you can use to capture nuanced relationships between words. These exercises should be helpful to you in explaining how it works, and applying it to your own projects!



■ What you should remember:

• Cosine similarity is a good way to compare the similarity between pairs of word vectors.
  • Note that L2 (Euclidean) distance also works.
• For NLP applications, using a pre-trained set of word vectors is often a great way to get started.

Even though you've finished the graded portion, please take a look at the rest of this notebook to learn about debiasing word vectors.

---

CHAPTER 6. 'Debiasing Word Vectors (OPTIONAL/UNGRADED)'

g = word_to_vec_map['woman'] - word_to_vec_map['man']

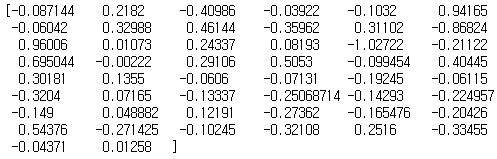

print(g)

print ('List of names and their similarities with constructed vector:')

# girls and boys name
name_list = ['john', 'marie', 'sophie', 'ronaldo', 'priya', 'rahul', 'danielle', 'reza', 'katy', 'yasmin']

for w in name_list:
    print (w, cosine_similarity(word_to_vec_map[w], g))

As you can see, female first names tend to have a positive cosine similarity with our constructed vector 𝑔g, while male first names tend to have a negative cosine similarity. This is not surprising, and the result seems acceptable.

---

print('Other words and their similarities:')
word_list = ['lipstick', 'guns', 'science', 'arts', 'literature', 'warrior','doctor', 'tree', 'receptionist',
             'technology',  'fashion', 'teacher', 'engineer', 'pilot', 'computer', 'singer']
for w in word_list:
    print (w, cosine_similarity(word_to_vec_map[w], g))

---

□ Neutralize Bias for Non-Gender Specific Words

---

■ neutralize



def neutralize(word, g, word_to_vec_map):
    """
    Removes the bias of "word" by projecting it on the space orthogonal to the bias axis.
    This function ensures that gender neutral words are zero in the gender subspace.

    Arguments:
        word -- string indicating the word to debias
        g -- numpy-array of shape (50,), corresponding to the bias axis (such as gender)
        word_to_vec_map -- dictionary mapping words to their corresponding vectors.

    Returns:
        e_debiased -- neutralized word vector representation of the input "word"
    """

    ### START CODE HERE ###
    # Select word vector representation of "word". Use word_to_vec_map. (≈ 1 line)
    e = word_to_vec_map[word]

    # Compute e_biascomponent using the formula given above. (≈ 1 line)
    e_biascomponent = np.dot(e, g) / np.dot(g, g) * g

    # Neutralize e by subtracting e_biascomponent from it
    # e_debiased should be equal to its orthogonal projection. (≈ 1 line)
    e_debiased = e - e_biascomponent
    ### END CODE HERE ###

    return e_debiased



e = "receptionist"
print("cosine similarity between " + e + " and g, before neutralizing: ", cosine_similarity(word_to_vec_map["receptionist"], g))

e_debiased = neutralize("receptionist", g, word_to_vec_map)
print("cosine similarity between " + e + " and g, after neutralizing: ", cosine_similarity(e_debiased, g))

---

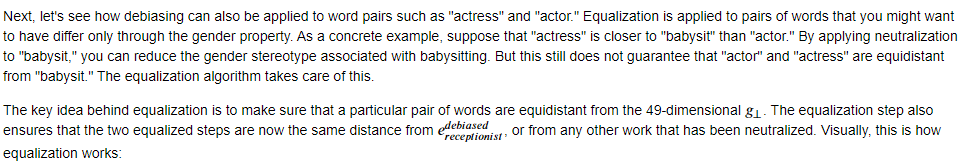

■ Equalization Algorithm for Gender-Specific Words

The derivation of the linear algebra to do this is a bit more complex. (See Bolukbasi et al., 2016 in the References for details.) Here are the key equations:

def equalize(pair, bias_axis, word_to_vec_map):
    """
    Debias gender specific words by following the equalize method described in the figure above.

    Arguments:
    pair -- pair of strings of gender specific words to debias, e.g. ("actress", "actor")
    bias_axis -- numpy-array of shape (50,), vector corresponding to the bias axis, e.g. gender
    word_to_vec_map -- dictionary mapping words to their corresponding vectors

    Returns
    e_1 -- word vector corresponding to the first word
    e_2 -- word vector corresponding to the second word
    """

    ### START CODE HERE ###
    # Step 1: Select word vector representation of "word". Use word_to_vec_map. (≈ 2 lines)
    w1, w2 = pair[0], pair[1]
    e_w1, e_w2 = word_to_vec_map[w1], word_to_vec_map[w2]

    # Step 2: Compute the mean of e_w1 and e_w2 (≈ 1 line)
    mu = (e_w1 + e_w2) / 2

    # Step 3: Compute the projections of mu over the bias axis and the orthogonal axis (≈ 2 lines)
    mu_B = np.dot(mu, bias_axis) / np.dot(bias_axis, bias_axis) * bias_axis
    mu_orth = mu - mu_B

    # Step 4: Use equations (7) and (8) to compute e_w1B and e_w2B (≈2 lines)
    e_w1B = np.dot(e_w1, bias_axis) / np.dot(bias_axis, bias_axis) * bias_axis
    e_w2B = np.dot(e_w2, bias_axis) / np.dot(bias_axis, bias_axis) * bias_axis

    # Step 5: Adjust the Bias part of e_w1B and e_w2B using the formulas (9) and (10) given above (≈2 lines)
    corrected_e_w1B = np.sqrt(abs(1 - np.dot(mu_orth, mu_orth))) * (e_w1B - mu_B) / abs((e_w1 - mu_orth) - mu_B)
    corrected_e_w2B = np.sqrt(abs(1 - np.dot(mu_orth, mu_orth))) * (e_w2B - mu_B) / abs((e_w2 - mu_orth) - mu_B)

    # Step 6: Debias by equalizing e1 and e2 to the sum of their corrected projections (≈2 lines)
    e1 = corrected_e_w1B + mu_orth
    e2 = corrected_e_w2B + mu_orth

    ### END CODE HERE ###

    return e1, e2



print("cosine similarities before equalizing:")
print("cosine_similarity(word_to_vec_map[\"man\"], gender) = ", cosine_similarity(word_to_vec_map["man"], g))
print("cosine_similarity(word_to_vec_map[\"woman\"], gender) = ", cosine_similarity(word_to_vec_map["woman"], g))
print()
e1, e2 = equalize(("man", "woman"), g, word_to_vec_map)
print("cosine similarities after equalizing:")
print("cosine_similarity(e1, gender) = ", cosine_similarity(e1, g))
print("cosine_similarity(e2, gender) = ", cosine_similarity(e2, g))

---

■ Congratulations!



You have come to the end of both graded and ungraded portions of this notebook, and have seen several of the ways that word vectors can be applied and modified. Great work pushing your knowledge in the areas of neutralizing and equalizing word vectors! See you next time.

---

■ 마무리



"Sequence Models" (Andrew Ng)의 2주차 "Operations on Word Vectors"의 실습에 대해서 정리해봤습니다.



그럼 오늘 하루도 즐거운 나날 되길 기도하겠습니다

좋아요와 댓글 부탁드립니다 :)



감사합니다.
