week 2_Train a review classifier with BERT and Amazon SageMaker 실습

---

안녕하세요, HELLO



오늘은 DeepLearning.AI, Amazon Web Services에서 진행하는 Practical Data Science Specialization의 두 번째 과정인 "Build, Train, and Deploy ML Pipelines using BERT"을 정리하려고 합니다.



"Build, Train, and Deploy ML Pipelines using BERT"의 강의를 통해 'Automate a natural language processing task by building an end-to-end machine learning pipeline'에 대해서 배우게 됩니다. 강의는 아래와 같이 구성되어 있습니다.



~ Feature Engineering and Feature Store

~ Train, Debug and Profile a Machine Learning Model

~ Deploy End-to-End Machine Learning pipelines



"Build, Train, and Deploy ML Pipelines using BERT"의 2주차 "Train, Debug and Profile a Machine Learning Model"의 실습 내용입니다.

---

In the previous lab you performed Feature Engineering on the raw dataset, preparing it for training the model. Now you will train a text classifier using a variant of BERT called RoBERTa - a Robustly Optimized BERT Pretraining Approach - within a PyTorch model ran as a SageMaker Training Job.

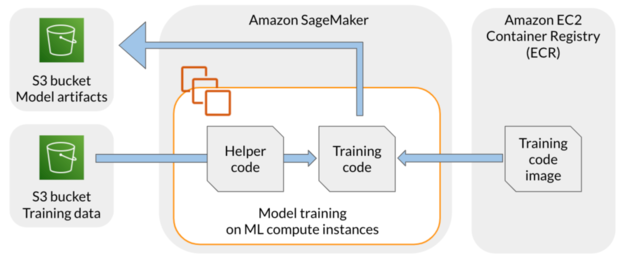

In this lab you will cover each part of the scheme. First, install and import the required modules:



# please ignore warning messages during the installation
!pip install --disable-pip-version-check -q sagemaker==2.35.0
!conda install -q -y pytorch==1.6.0 -c pytorch
!pip install --disable-pip-version-check -q transformers==3.5.1

import boto3
import sagemaker
import pandas as pd
import numpy as np
import botocore

config = botocore.config.Config(user_agent_extra='dlai-pds/c2/w2')

# low-level service client of the boto3 session
sm = boto3.client(service_name='sagemaker',
                  config=config)

sm_runtime = boto3.client('sagemaker-runtime',
                          config=config)

sess = sagemaker.Session(sagemaker_client=sm,
                         sagemaker_runtime_client=sm_runtime)

bucket = sess.default_bucket()
role = sagemaker.get_execution_role()
region = sess.boto_region_name

import matplotlib.pyplot as plt
%matplotlib inline
%config InlineBackend.figure_format='retina'

---

CHAPTER 1. Configure dataset, hyper-parameters and evaluation metrics'



CHAPTER 2. Train model'



CHAPTER 3. Deploy the model'



CHAPTER 4. 'Test model'

---

CHAPTER 1. Configure dataset, hyper-parameters and evaluation metrics'



□ Configure dataset



You have already transformed and balanced the data into a format that the model expects. Let's copy this data to S3. You will be using training and validation datasets to train the model. Test dataset will be used for tuning later. Setup the paths:

processed_train_data_s3_uri = 's3://{}/data/sentiment-train/'.format(bucket)
processed_validation_data_s3_uri = 's3://{}/data/sentiment-validation/'.format(bucket)



Upload the data to S3 bucket:

!aws s3 cp --recursive ./data/sentiment-train $processed_train_data_s3_uri
!aws s3 cp --recursive ./data/sentiment-validation $processed_validation_data_s3_uri



Check the existence of those files in the S3 bucket:

!aws s3 ls --recursive $processed_train_data_s3_uri
!aws s3 ls --recursive $processed_validation_data_s3_uri



You will need to setup the input data channels, wrapping the S3 locations in a TrainingInput object to use with the SageMaker Training Job. This can be organized as a dictionary

data_channels = {
    'train': ..., # training data
    'validation': ... # validation data
}

where training and validation data are the Amazon SageMaker channels for S3 input data sources.

---

□ Exercise 1



Create a train data channel.

Instructions: Pass the S3 input path for training data into the sagemaker.inputs.TrainingInput function.



s3_input_train_data = sagemaker.inputs.TrainingInput(
    ### BEGIN SOLUTION - DO NOT delete this comment for grading purposes
    s3_data=processed_train_data_s3_uri # Replace None
    ### END SOLUTION - DO NOT delete this comment for grading purposes
)

---

□ Exercise 2



Create a validation data channel.

Instructions: Pass the S3 input path for validation data into the sagemaker.inputs.TrainingInput function.



Exercise 2
Create a validation data channel.

Instructions: Pass the S3 input path for validation data into the sagemaker.inputs.TrainingInput function.

---

□ Exercise 3



Organize data channels defined above as a dictionary.



data_channels = {
    ### BEGIN SOLUTION - DO NOT delete this comment for grading purposes
    'train': s3_input_train_data, # Replace None
    'validation': s3_input_validation_data # Replace None
    ### END SOLUTION - DO NOT delete this comment for grading purposes
}

---

□ 1.2. Configure model hyper-parameters



Set the Training Job parameters including the instance type, instance count, learning rate, batch size etc. For the purposes of this lab, you will use a relatively small instance type. Please refer to this link for additional instance types that may work for your use cases outside of this lab.



max_seq_length=128 # maximum number of input tokens passed to BERT model
freeze_bert_layer=False # specifies the depth of training within the network
epochs=3
learning_rate=2e-5
train_batch_size=256
train_steps_per_epoch=50
validation_batch_size=256
validation_steps_per_epoch=50
seed=42
run_validation=True

train_instance_count=1
train_instance_type='ml.c5.9xlarge'
train_volume_size=256
input_mode='File'



Some of them will be passed into the PyTorch estimator in the hyperparameters argument. Let's setup the dictionary for that:



hyperparameters={
    'max_seq_length': max_seq_length,
    'freeze_bert_layer': freeze_bert_layer,
    'epochs': epochs,
    'learning_rate': learning_rate,
    'train_batch_size': train_batch_size,
    'train_steps_per_epoch': train_steps_per_epoch,
    'validation_batch_size': validation_batch_size,
    'validation_steps_per_epoch': validation_steps_per_epoch,
    'seed': seed,
    'run_validation': run_validation
}

---

□ Setup evaluation metrics



Choose loss and accuracy as the evaluation metrics. The regular expressions Regex will capture the values of metrics that the algorithm will emit.



metric_definitions = [
     {'Name': 'validation:loss', 'Regex': 'val_loss: ([0-9.]+)'},
     {'Name': 'validation:accuracy', 'Regex': 'val_acc: ([0-9.]+)'},
]

---

□ Setup Debugger and Profiler



Amazon SageMaker Debugger can be used to profile machine learning models, helping to identify and fix training issues caused by hardware resource usage. Setting some parameters in the SageMaker estimator, without any change to the training code, you can enable the collection of infrastructure and model metrics such as: CPU and GPU, RAM and GPU RAM, data loading time, time spent in ML operators running on CPU and GPU, distributed training metrics and many more. In addition, you can visualize how much time is spent in different phases, such as preprocessing, training loop, and postprocessing. If needed, you can drill down on each training epoch, and even on each function in your training script.



Define Debugger Rules as described here: https://docs.aws.amazon.com/sagemaker/latest/dg/debugger-built-in-rules.html

from sagemaker.debugger import Rule, ProfilerRule, rule_configs
from sagemaker.debugger import DebuggerHookConfig
from sagemaker.debugger import ProfilerConfig, FrameworkProfile



DebuggerHookConfig provides options to customize how debugging information is emitted and saved. s3_output_path argument value defines the location in Amazon S3 to store the output.

debugger_hook_config = DebuggerHookConfig(
    s3_output_path='s3://{}'.format(bucket),
)



ProfilerConfig sets the configuration for collecting system and framework metrics of SageMaker Training Jobs. Parameter system_monitor_interval_millis sets the time interval to collect system metrics (in milliseconds). Parameter framework_profile_params is the object for framework metrics profiling. Here you will set its local path, the step at which to start profiling, start_step, and the number of steps to profile, num_steps.



from sagemaker.debugger import ProfilerConfig, FrameworkProfile

profiler_config = ProfilerConfig(
    system_monitor_interval_millis=500,
    framework_profile_params=FrameworkProfile(local_path="/opt/ml/output/profiler/", start_step=5, num_steps=10)
)



For monitoring and profiling the built-in rules you can use the ProfilerReport. It creates a profiling report and updates when the individual rules are triggered. If you trigger this ProfilerReport rule without any customized parameter as in the cell below, then the ProfilerReport rule triggers all of the built-in rules for monitoring and profiling with their default parameter values.

The profiling report can be downloaded while the Training Job is running or after the job has finished.

rules=[ProfilerRule.sagemaker(rule_configs.ProfilerReport())]





728x90



CHAPTER 2. Train model'



□ Setup the RoBERTa and PyTorch script to run on SageMaker



You will prepare the PyTorch model to run as a SageMaker Training Job in a separate Python file, which will be called during the training. Here you will be using the pre-trained model roberta-base. The information about the available models can be found in the Hugging Face website.

---

□ Exercise 4

1. Open the file src/train.py. Go through the comments to understand its content.
2. Find and review the configure_model() function, which contains the RoBERTa model configuration.
3. In the following function investigate given mapping label2id of a 0-indexed list of classes used by BERT [0, 1, 2] to the list of the sentiment values [-1, 0, 1]:

    config = RobertaConfig.from_pretrained(
        PRE_TRAINED_MODEL_NAME,
        num_labels=len(classes),
        id2label={
            ...: ...,
            ...: ...,
            ...: ...,
        },
        label2id={
            -1: 0,
            0: 1,
            1: 2,
        }
    )

1. Update the function setting up the opposite mapping id2label: sentiment values [-1, 0, 1] to a 0-indexed list of classes used by BERT.
2. Save the file src/train.py (with the menu command File -> Save Python File).



import sys, importlib
sys.path.append('src/')

import train

# reload the module if it has been previously loaded
if 'train' in sys.modules:
    importlib.reload(train)

# Ignore warnings below
config = train.configure_model()

label_0 = config.id2label[0]
label_1 = config.id2label[1]
label_2 = config.id2label[2]

updated_correctly = False

if label_0 != -1 or label_1 != 0 or label_2 != 1:
    print('#######################################################################################')
    print('Please check that the function \'configure_model\' in the file src/train.py is complete.')
    print('########################################################################################')
    raise Exception('Please check that the function \'configure_model\' in the file src/train.py is complete.')
else:
    print('##################')
    print('Updated correctly!')
    print('##################')

    updated_correctly = True



Setup the PyTorch estimator to train our model. For more information on the PyTorch estimator, see the documentation here.



from sagemaker.pytorch import PyTorch as PyTorchEstimator

if updated_correctly:
    estimator = PyTorchEstimator(
        entry_point='train.py',
        source_dir='src',
        role=role,
        instance_count=train_instance_count,
        instance_type=train_instance_type,
        volume_size=train_volume_size,
        py_version='py3', # dynamically retrieves the correct training image (Python 3)
        framework_version='1.6.0', # dynamically retrieves the correct training image (PyTorch)
        hyperparameters=hyperparameters,
        metric_definitions=metric_definitions,
        input_mode=input_mode,
        debugger_hook_config=debugger_hook_config,
        profiler_config=profiler_config,
        rules=rules
    )

---

□Exercise 5



Launch the SageMaker Training Job which will be fitting the model to the dataset.

Instructions: Use the estimator.fit function, passing the configured train and validation inputs (data channels).

estimator.fit(
    inputs=..., # train and validation input
    wait=False # do not wait for the job to complete before continuing
)



estimator.fit(
    ### BEGIN SOLUTION - DO NOT delete this comment for grading purposes
    inputs=data_channels, # Replace None
    ### END SOLUTION - DO NOT delete this comment for grading purposes
    wait=False
)



You can refer to the last Training Job using the estimator function latest_training_job. Then the Training Job name can be found with the name function:

training_job_name = estimator.latest_training_job.name

print('Training Job name: {}'.format(training_job_name))



You can also load the information about the Training Job using the function describe(). The result is in dictionary format. Let's check that it has the same Training Job name:

training_job_name = estimator.latest_training_job.describe()['TrainingJobName']

print('Training Job name: {}'.format(training_job_name))

---

□ Exercise 6



Pull the Training Job status from the Training Job description.

Instructions: Print the keys of the Training Job description dictionary, choose the one related to the primary status of the Training Job and print the value of it.



print(estimator.latest_training_job.describe().keys())

'''
dict_keys(['TrainingJobName', 'TrainingJobArn', 'TrainingJobStatus', 'SecondaryStatus',
'HyperParameters', 'AlgorithmSpecification', 'RoleArn', 'InputDataConfig',
'OutputDataConfig', 'ResourceConfig', 'StoppingCondition', 'CreationTime',
'TrainingStartTime', 'LastModifiedTime', 'SecondaryStatusTransitions',
'EnableNetworkIsolation', 'EnableInterContainerTrafficEncryption',
'EnableManagedSpotTraining', 'TrainingTimeInSeconds', 'DebugHookConfig', 'ProfilerConfig',
'ProfilerRuleConfigurations', 'ProfilerRuleEvaluationStatuses', 'ProfilingStatus',
'ResponseMetadata'])
'''



### BEGIN SOLUTION - DO NOT delete this comment for grading purposes
training_job_status_primary = estimator.latest_training_job.describe()['TrainingJobStatus'] # Replace None
### END SOLUTION - DO NOT delete this comment for grading purposes
print('Training Job status: {}'.format(training_job_status_primary))

# Training Job status: InProgress

---

This cell will take approximately 30-40 minutes to run.

%%time

estimator.latest_training_job.wait(logs=False)



Review the training metrics.

df_metrics = estimator.training_job_analytics.dataframe()



You can query and plot the training metrics:

df_metrics.query("metric_name=='validation:accuracy'").plot(x='timestamp', y='value')

---

□ Analyze Debugger results

You can now explore the debugger output data:

from IPython.core.display import display, HTML

display(
    HTML(
        '<b>Review <a target="blank" href="https://s3.console.aws.amazon.com/s3/buckets/{}?prefix={}/">S3 debugger output data</a></b>'.format(
            bucket, training_job_name
        )
    )
)

---

□ Download SageMaker debugger profiling report



You can download and review the debugger profiling report. Here is the path in the S3 bucket:



profiler_report_s3_uri = "s3://{}/{}/rule-output/ProfilerReport/profiler-output".format(bucket, training_job_name)

You can list the report files:

!aws s3 ls $profiler_report_s3_uri/



The folder profiler-reports contains the built-in rule analysis components, stored in JSON and a Jupyter notebook. They are aggregated into the report.

!aws s3 cp --recursive $profiler_report_s3_uri ./profiler_report/



You can review the profiler report in the console.

Note: Click Trust HTML in the profiler-report.html tab that opens (on top of the document).

from IPython.core.display import display, HTML

display(HTML('<b>Review <a target="blank" href="./profiler_report/profiler-report.html">profiler report</a></b>'))



반응형



CHAPTER 3. Deploy the model'



Create a custom SentimentPredictor that encapsulates a JSONLines serializer and deserializer. To be passed into the PyTorchModel it needs to be wrapped as a class.



from sagemaker.predictor import Predictor
from sagemaker.serializers import JSONLinesSerializer
from sagemaker.deserializers import JSONLinesDeserializer

class SentimentPredictor(Predictor):
    def __init__(self, endpoint_name, sagemaker_session):
        super().__init__(endpoint_name,
                         sagemaker_session=sagemaker_session,
                         serializer=JSONLinesSerializer(),
                         deserializer=JSONLinesDeserializer())



import time
from sagemaker.pytorch.model import PyTorchModel

timestamp = int(time.time())

pytorch_model_name = '{}-{}-{}'.format(training_job_name, 'pt', timestamp)

model = PyTorchModel(name=pytorch_model_name,
                     model_data=estimator.model_data,
                     predictor_cls=SentimentPredictor,
                     entry_point='inference.py',
                     source_dir='src',
                     framework_version='1.6.0',
                     py_version='py3',
                     role=role)



import time

pytorch_endpoint_name = '{}-{}-{}'.format(training_job_name, 'pt', timestamp)

print(pytorch_endpoint_name)

---

This cell will take approximately 5-10 minutes to run.



%%time

predictor = model.deploy(initial_instance_count=1,
                         instance_type='ml.m5.large',
                         endpoint_name=pytorch_endpoint_name)

---

CHAPTER 4. 'Test model'



Here, we will pass sample strings of text to the endpoint in order to see the sentiment. We give you one example of each, however, feel free to play around and change the strings yourself!



inputs = [
    {"features": ["I love this product!"]},
    {"features": ["OK, but not great."]},
    {"features": ["This is not the right product."]},
]

predictor = SentimentPredictor(endpoint_name=pytorch_endpoint_name,
                               sagemaker_session=sess)

predicted_classes = predictor.predict(inputs)

for predicted_class in predicted_classes:
    print("Predicted class {} with probability {}".format(predicted_class['predicted_label'], predicted_class['probability']))

---

■ 마무리



"Build, Train, and Deploy ML Pipelines using BERT"의 2주 차 "Train, Debug and Profile a Machine Learning Model"의 실습에 대해서 정리해봤습니다.



그럼 오늘 하루도 즐거운 나날 되길 기도하겠습니다

좋아요와 댓글 부탁드립니다 :)



감사합니다.
