오늘은 DeepLearning.AI에서 진행하는 앤드류 응(Andrew Ng) 교수님의 딥러닝 전문화의 네 번째 과정인 "Convolutional Neural Networks"을 정리하려고 합니다.
"Convolutional Neural Networks"의 강의를 통해 '자율 주행, 얼굴 인식, 방사선 이미지 인식' 등을 이해하고, CNN 모델에 대해서 배우게 됩니다. 강의는 아래와 같이 구성되어 있습니다.
~ Foundations of Convolutional Neural Networks
~ Deep Convolutional Models: Case Studies
~ Object Detection
~ Special Applications: Face recognition & Neural Style Transfer
"Convolutional Neural Networks" (Andrew Ng)의 2주차 "Transfer Learning with MobileNetV2"의 실습 내용입니다.
이번 실습에서는 사전에 훈련된 CNN의 훈련 결과를 이전(transfer learning)하여, 알파카 분류기를 만듧니다.
A pre-trained model is a network that's already been trained on a large dataset and saved, which allows you to use it to customize your own model cheaply and efficiently. The one you'll be using, MobileNetV2, was designed to provide fast and computationally efficient performance. It's been pre-trained on ImageNet, a dataset containing over 14 million images and 1000 classes.
By the end of this assignment, you will be able to:
- Create a dataset from a directory
- Preprocess and augment data using the Sequential API
- Adapt a pretrained model to new data and train a classifier using the Functional API and MobileNet
- Fine-tune a classifier's final layers to improve accuracy
CHAPTER 1. 'Packages'
CHAPTER 2. 'Preprocess and Augment Training Data'
CHAPTER 3. 'Using MobileNetV2 for Transfer Learning'
CHAPTER 1. 'Packages'
import matplotlib.pyplot as plt
import numpy as np
import os
import tensorflow as tf
import tensorflow.keras.layers as tfl
from tensorflow.keras.preprocessing import image_dataset_from_directory
from tensorflow.keras.layers.experimental.preprocessing import RandomFlip, RandomRotation□ Create the Dataset and Split it into Training and Validation Sets
When training and evaluating deep learning models in Keras, generating a dataset from image files stored on disk is simple and fast. Call image_data_set_from_directory() to read from the directory and create both training and validation datasets.
If you're specifying a validation split, you'll also need to specify the subset for each portion. Just set the training set to subset='training' and the validation set to subset='validation'.
You'll also set your seeds to match each other, so your training and validation sets don't overlap. :)
BATCH_SIZE = 32
IMG_SIZE = (160, 160)
directory = "dataset/"
train_dataset = image_dataset_from_directory(directory,
shuffle=True,
batch_size=BATCH_SIZE,
image_size=IMG_SIZE,
validation_split=0.2,
subset='training',
seed=42)
validation_dataset = image_dataset_from_directory(directory,
shuffle=True,
batch_size=BATCH_SIZE,
image_size=IMG_SIZE,
validation_split=0.2,
subset='validation',
seed=42)
알파카와 알파카 이외로 구성된 training set의 구성을 살펴보겠습니다.
class_names = train_dataset.class_names
plt.figure(figsize=(10, 10))
for images, labels in train_dataset.take(1):
for i in range(9):
ax = plt.subplot(3, 3, i + 1)
plt.imshow(images[i].numpy().astype("uint8"))
plt.title(class_names[labels[i]])
plt.axis("off")
CHAPTER 2. 'Preprocess and Augment Training Data'
You may have encountered dataset.prefetch in a previous TensorFlow assignment, as an important extra step in data preprocessing.
Using prefetch() prevents a memory bottleneck that can occur when reading from disk. It sets aside some data and keeps it ready for when it's needed, by creating a source dataset from your input data, applying a transformation to preprocess it, then iterating over the dataset one element at a time. Because the iteration is streaming, the data doesn't need to fit into memory.
You can set the number of elements to prefetch manually, or you can use tf.data.experimental.AUTOTUNE to choose the parameters automatically. Autotune prompts tf.data to tune that value dynamically at runtime, by tracking the time spent in each operation and feeding those times into an optimization algorithm. The optimization algorithm tries to find the best allocation of its CPU budget across all tunable operations.
To increase diversity in the training set and help your model learn the data better, it's standard practice to augment the images by transforming them, i.e., randomly flipping and rotating them. Keras' Sequential API offers a straightforward method for these kinds of data augmentations, with built-in, customizable preprocessing layers. These layers are saved with the rest of your model and can be re-used later. Ahh, so convenient!
As always, you're invited to read the official docs, which you can find for data augmentation here.
AUTOTUNE = tf.data.experimental.AUTOTUNE
train_dataset = train_dataset.prefetch(buffer_size=AUTOTUNE)□ data_augmenter
# UNQ_C1
# GRADED FUNCTION: data_augmenter
def data_augmenter():
'''
Create a Sequential model composed of 2 layers
Returns:
tf.keras.Sequential
'''
### START CODE HERE
data_augmentation = tf.keras.Sequential()
data_augmentation.add(RandomFlip('horizontal'))
data_augmentation.add(RandomRotation(0.2))
### END CODE HERE
return data_augmentation
augmenter = data_augmenter()
assert(augmenter.layers[0].name.startswith('random_flip')), "First layer must be RandomFlip"
assert augmenter.layers[0].mode == 'horizontal', "RadomFlip parameter must be horizontal"
assert(augmenter.layers[1].name.startswith('random_rotation')), "Second layer must be RandomRotation"
assert augmenter.layers[1].factor == 0.2, "Rotation factor must be 0.2"
print('\033[92mAll tests passed!')Take a look at how an image from the training set has been augmented with simple transformations:
From one cute animal, to 9 variations of that cute animal, in three lines of code. Now your model has a lot more to learn from.
data_augmentation = data_augmenter()
for image, _ in train_dataset.take(1):
plt.figure(figsize=(10, 10))
first_image = image[0]
for i in range(9):
ax = plt.subplot(3, 3, i + 1)
augmented_image = data_augmentation(tf.expand_dims(first_image, 0))
plt.imshow(augmented_image[0] / 255)
plt.axis('off')
Next, you'll apply your first tool from the MobileNet application in TensorFlow, to normalize your input. Since you're using a pre-trained model that was trained on the normalization values [-1,1], it's best practice to reuse that standard with tf.keras.applications.mobilenet_v2.preprocess_input.
What you should remember:
- When calling image_data_set_from_directory(), specify the train/val subsets and match the seeds to prevent overlap
- Use prefetch() to prevent memory bottlenecks when reading from disk
- Give your model more to learn from with simple data augmentations like rotation and flipping.
- When using a pretrained model, it's best to reuse the weights it was trained on.
preprocess_input = tf.keras.applications.mobilenet_v2.preprocess_input
CHAPTER 3. 'Using MobileNetV2 for Transfer Learning'
MobileNetV2 was trained on ImageNet and is optimized to run on mobile and other low-power applications. It's 155 layers deep (just in case you felt the urge to plot the model yourself, prepare for a long journey!) and very efficient for object detection and image segmentation tasks, as well as classification tasks like this one. The architecture has three defining characteristics:
- Depthwise separable convolutions
- Thin input and output bottlenecks between layers
- Shortcut connections between bottleneck layers
□ Inside a MobileNetV2 Convolutional Building Block
MobileNetV2 uses depthwise separable convolutions as efficient building blocks. Traditional convolutions are often very resource-intensive, and depthwise separable convolutions are able to reduce the number of trainable parameters and operations and also speed up convolutions in two steps:
- The first step calculates an intermediate result by convolving on each of the channels independently. This is the depthwise convolution.
- In the second step, another convolution merges the outputs of the previous step into one. This gets a single result from a single feature at a time, and then is applied to all the filters in the output layer. This is the pointwise convolution, or: Shape of the depthwise convolution X Number of filters.
Each block consists of an inverted residual structure with a bottleneck at each end. These bottlenecks encode the intermediate inputs and outputs in a low dimensional space, and prevent non-linearities from destroying important information.
The shortcut connections, which are similar to the ones in traditional residual networks, serve the same purpose of speeding up training and improving predictions. These connections skip over the intermediate convolutions and connect the bottleneck layers.
Let's try to train your base model using all the layers from the pretrained model.
Similarly to how you reused the pretrained normalization values MobileNetV2 was trained on, you'll also load the pretrained weights from ImageNet by specifying weights='imagenet'.
IMG_SHAPE = IMG_SIZE + (3,)
base_model = tf.keras.applications.MobileNetV2(input_shape=IMG_SHAPE,
include_top=True,
weights='imagenet')
Note the last 2 layers here. They are the so called top layers, and they are responsible of the classification in the model
nb_layers = len(base_model.layers)
print(base_model.layers[nb_layers - 2].name)
print(base_model.layers[nb_layers - 1].name)
Notice some of the layers in the summary like Conv2D and DepthwiseConv2D and how they follow the progression of expansion to depthwise convolution to projection. In combination with BatchNormalization and ReLU, these make up the bottleneck layers mentioned earlier.
What you should remember:
- MobileNetV2's unique features are:
- Depthwise separable convolutions that provide lightweight feature filtering and creation
- Input and output bottlenecks that preserve important information on either end of the block
- Depthwise separable convolutions deal with both spatial and depth (number of channels) dimensions
Next, choose the first batch from the tensorflow dataset to use the images, and run it through the MobileNetV2 base model to test out the predictions on some of your images.
image_batch, label_batch = next(iter(train_dataset))
feature_batch = base_model(image_batch)
print(feature_batch.shape)
# (32, 1000)
#Shows the different label probabilities in one tensor
label_batch
'''
<tf.Tensor: shape=(32,), dtype=int32, numpy=
array([1, 0, 0, 1, 1, 1, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0,
0, 0, 1, 0, 1, 1, 1, 1, 0, 0], dtype=int32)>
'''

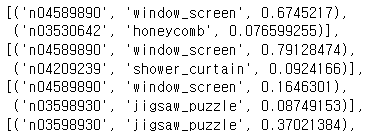

Now decode the predictions made by the model. Earlier, when you printed the shape of the batch, it would have returned (32, 1000). The number 32 refers to the batch size and 1000 refers to the 1000 classes the model was pretrained on. The predictions returned by the base model below follow this format:
First the class number, then a human-readable label, and last the probability of the image belonging to that class. You'll notice that there are two of these returned for each image in the batch - these the top two probabilities returned for that image.
base_model.trainable = False
image_var = tf.Variable(image_batch)
pred = base_model(image_var)
tf.keras.applications.mobilenet_v2.decode_predictions(pred.numpy(), top=2)
Uh-oh. There's a whole lot of labels here, some of them hilariously wrong, but none of them say "alpaca."
This is because MobileNet pretrained over ImageNet doesn't have the correct labels for alpacas, so when you use the full model, all you get is a bunch of incorrectly classified images.
Fortunately, you can delete the top layer, which contains all the classification labels, and create a new classification layer.
□ Layer Freezing with the Functional API
# UNQ_C2
# GRADED FUNCTION
def alpaca_model(image_shape=IMG_SIZE, data_augmentation=data_augmenter()):
''' Define a tf.keras model for binary classification out of the MobileNetV2 model
Arguments:
image_shape -- Image width and height
data_augmentation -- data augmentation function
Returns:
Returns:
tf.keras.model
'''
input_shape = image_shape + (3,)
### START CODE HERE
base_model = tf.keras.applications.MobileNetV2(input_shape=IMG_SHAPE,
include_top=False, # <== Important!!!!
weights='imagenet') # From imageNet
# freeze the base model by making it non trainable
base_model.trainable = False
# create the input layer (Same as the imageNetv2 input size)
inputs = tf.keras.Input(shape=input_shape)
# apply data augmentation to the inputs
x = data_augmentation(inputs)
# data preprocessing using the same weights the model was trained on
x = preprocess_input(x)
# set training to False to avoid keeping track of statistics in the batch norm layer
x = base_model(x, training=False)
# add the new Binary classification layers
# use global avg pooling to summarize the info in each channel
x = tf.keras.layers.GlobalAveragePooling2D()(x)
# include dropout with probability of 0.2 to avoid overfitting
x = tfl.Dropout(0.2)(x)
# use a prediction layer with one neuron (as a binary classifier only needs one)
outputs = tf.keras.layers.Dense(1)(x)
### END CODE HERE
model = tf.keras.Model(inputs, outputs)
return model
model2 = alpaca_model(IMG_SIZE, data_augmentation)
from test_utils import summary, comparator
alpaca_summary = [['InputLayer', [(None, 160, 160, 3)], 0],
['Sequential', (None, 160, 160, 3), 0],
['TensorFlowOpLayer', [(None, 160, 160, 3)], 0],
['TensorFlowOpLayer', [(None, 160, 160, 3)], 0],
['Functional', (None, 5, 5, 1280), 2257984],
['GlobalAveragePooling2D', (None, 1280), 0],
['Dropout', (None, 1280), 0, 0.2],
['Dense', (None, 1), 1281, 'linear']] #linear is the default activation
comparator(summary(model2), alpaca_summary)
for layer in summary(model2):
print(layer)
The base learning rate has been set for you, so you can go ahead and compile the new model and run it for 5 epochs:
base_learning_rate = 0.001
model2.compile(optimizer=tf.keras.optimizers.Adam(lr=base_learning_rate),
loss=tf.keras.losses.BinaryCrossentropy(from_logits=True),
metrics=['accuracy'])
initial_epochs = 5
history = model2.fit(train_dataset, validation_data=validation_dataset, epochs=initial_epochs)

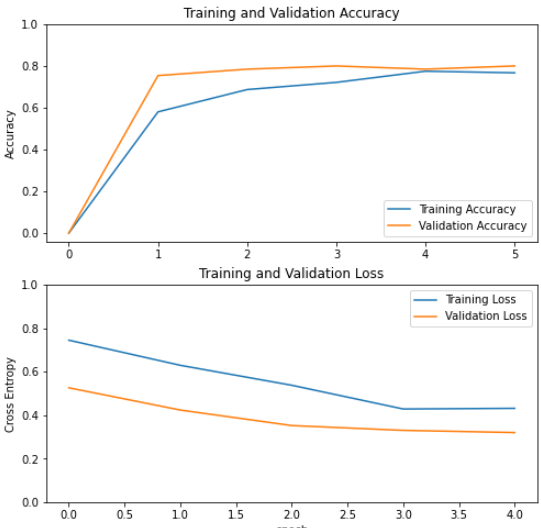

acc = [0.] + history.history['accuracy']
val_acc = [0.] + history.history['val_accuracy']
loss = history.history['loss']
val_loss = history.history['val_loss']
plt.figure(figsize=(8, 8))
plt.subplot(2, 1, 1)
plt.plot(acc, label='Training Accuracy')
plt.plot(val_acc, label='Validation Accuracy')
plt.legend(loc='lower right')
plt.ylabel('Accuracy')
plt.ylim([min(plt.ylim()),1])
plt.title('Training and Validation Accuracy')
plt.subplot(2, 1, 2)
plt.plot(loss, label='Training Loss')
plt.plot(val_loss, label='Validation Loss')
plt.legend(loc='upper right')
plt.ylabel('Cross Entropy')
plt.ylim([0,1.0])
plt.title('Training and Validation Loss')
plt.xlabel('epoch')
plt.show()
□ Fine-tuning the Model
You could try fine-tuning the model by re-running the optimizer in the last layers to improve accuracy. When you use a smaller learning rate, you take smaller steps to adapt it a little more closely to the new data. In transfer learning, the way you achieve this is by unfreezing the layers at the end of the network, and then re-training your model on the final layers with a very low learning rate. Adapting your learning rate to go over these layers in smaller steps can yield more fine details - and higher accuracy.
The intuition for what's happening: when the network is in its earlier stages, it trains on low-level features, like edges. In the later layers, more complex, high-level features like wispy hair or pointy ears begin to emerge. For transfer learning, the low-level features can be kept the same, as they have common features for most images. When you add new data, you generally want the high-level features to adapt to it, which is rather like letting the network learn to detect features more related to your data, such as soft fur or big teeth.
To achieve this, just unfreeze the final layers and re-run the optimizer with a smaller learning rate, while keeping all the other layers frozen.
Where the final layers actually begin is a bit arbitrary, so feel free to play around with this number a bit. The important takeaway is that the later layers are the part of your network that contain the fine details (pointy ears, hairy tails) that are more specific to your problem.
First, unfreeze the base model by setting base_model.trainable=True, set a layer to fine-tune from, then re-freeze all the layers before it. Run it again for another few epochs, and see if your accuracy improved!
# UNQ_C3
base_model = model2.layers[4]
base_model.trainable = True
# Let's take a look to see how many layers are in the base model
print("Number of layers in the base model: ", len(base_model.layers))
# Fine-tune from this layer onwards
fine_tune_at = 120
### START CODE HERE
# Freeze all the layers before the `fine_tune_at` layer
for layer in base_model.layers[:fine_tune_at]:
layer.trainable = True
# Define a BinaryCrossentropy loss function. Use from_logits=True
loss_function= tf.keras.losses.BinaryCrossentropy(from_logits=True)
# Define an Adam optimizer with a learning rate of 0.1 * base_learning_rate
optimizer = tf.keras.optimizers.Adam(learning_rate=0.1 * base_learning_rate)
# Use accuracy as evaluation metric
metrics=['accuracy']
### END CODE HERE
model2.compile(loss=loss_function,
optimizer = optimizer,
metrics=metrics)
# Number of layers in the base model: 155
assert type(loss_function) == tf.python.keras.losses.BinaryCrossentropy, "Not the correct layer"
assert loss_function.from_logits, "Use from_logits=True"
assert type(optimizer) == tf.keras.optimizers.Adam, "This is not an Adam optimizer"
assert optimizer.lr == base_learning_rate / 10, "Wrong learning rate"
assert metrics[0] == 'accuracy', "Wrong metric"
print('\033[92mAll tests passed!')
fine_tune_epochs = 5
total_epochs = initial_epochs + fine_tune_epochs
history_fine = model2.fit(train_dataset,
epochs=total_epochs,
initial_epoch=history.epoch[-1],
validation_data=validation_dataset)
Ahhh, quite an improvement! A little fine-tuning can really go a long way.
acc += history_fine.history['accuracy']
val_acc += history_fine.history['val_accuracy']
loss += history_fine.history['loss']
val_loss += history_fine.history['val_loss']
plt.figure(figsize=(8, 8))
plt.subplot(2, 1, 1)
plt.plot(acc, label='Training Accuracy')
plt.plot(val_acc, label='Validation Accuracy')
plt.ylim([0, 1])
plt.plot([initial_epochs-1,initial_epochs-1],
plt.ylim(), label='Start Fine Tuning')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')
plt.subplot(2, 1, 2)
plt.plot(loss, label='Training Loss')
plt.plot(val_loss, label='Validation Loss')
plt.ylim([0, 1.0])
plt.plot([initial_epochs-1,initial_epochs-1],
plt.ylim(), label='Start Fine Tuning')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.xlabel('epoch')
plt.show()
What you should remember:
- To adapt the classifier to new data: Delete the top layer, add a new classification layer, and train only on that layer
- When freezing layers, avoid keeping track of statistics (like in the batch normalization layer)
- Fine-tune the final layers of your model to capture high-level details near the end of the network and potentially improve accuracy
You've completed this assignment on transfer learning and fine-tuning. Here's a quick recap of all you just accomplished:
- Created a dataset from a directory
- Augmented data with the Sequential API
- Adapted a pretrained model to new data with the Functional API and MobileNetV2
- Fine-tuned the classifier's final layers and boosted the model's accuracy
■ 마무리
"Convolutional Neural Networks" (Andrew Ng)의 2주차 "Transfer Learning with MobileNetV2"의 실습에 대해서 정리해봤습니다.
그럼 오늘 하루도 즐거운 나날 되길 기도하겠습니다
좋아요와 댓글 부탁드립니다 :)
감사합니다.
'COURSERA' 카테고리의 다른 글
| week 3_Object Detection 연습 문제 (Andrew Ng) (0) | 2022.03.13 |
|---|---|
| week 3_Object Detection (Andrew Ng) (0) | 2022.03.13 |
| week 2_Residual Networks 실습 (Andrew Ng) (0) | 2022.03.13 |
| week 2_Deep Convolutional Models 연습 문제 (Andrew Ng) (0) | 2022.03.13 |
| week 2_Deep Convolutional Models: Case Studies (Andrew Ng) (0) | 2022.03.13 |
댓글
